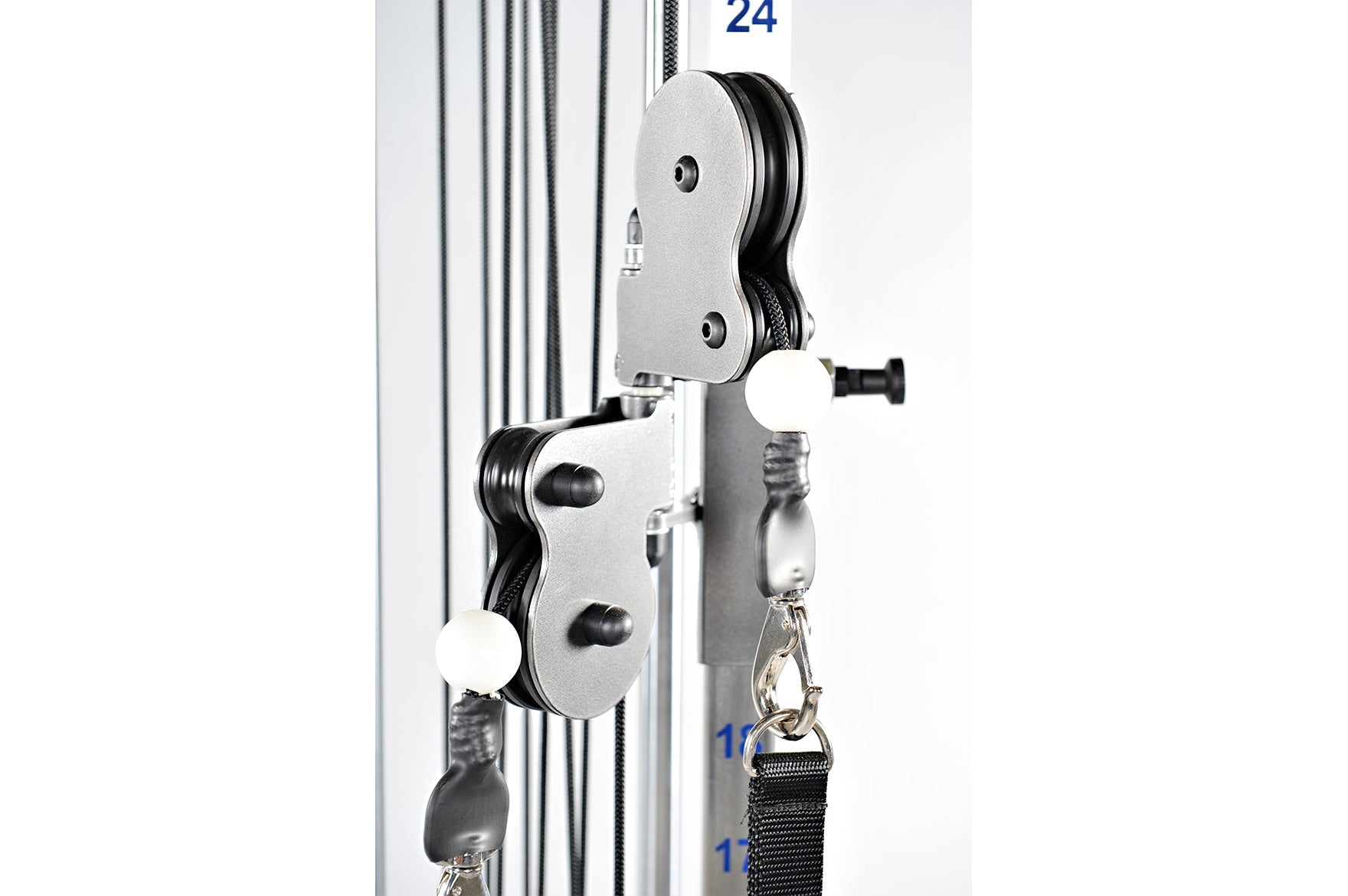

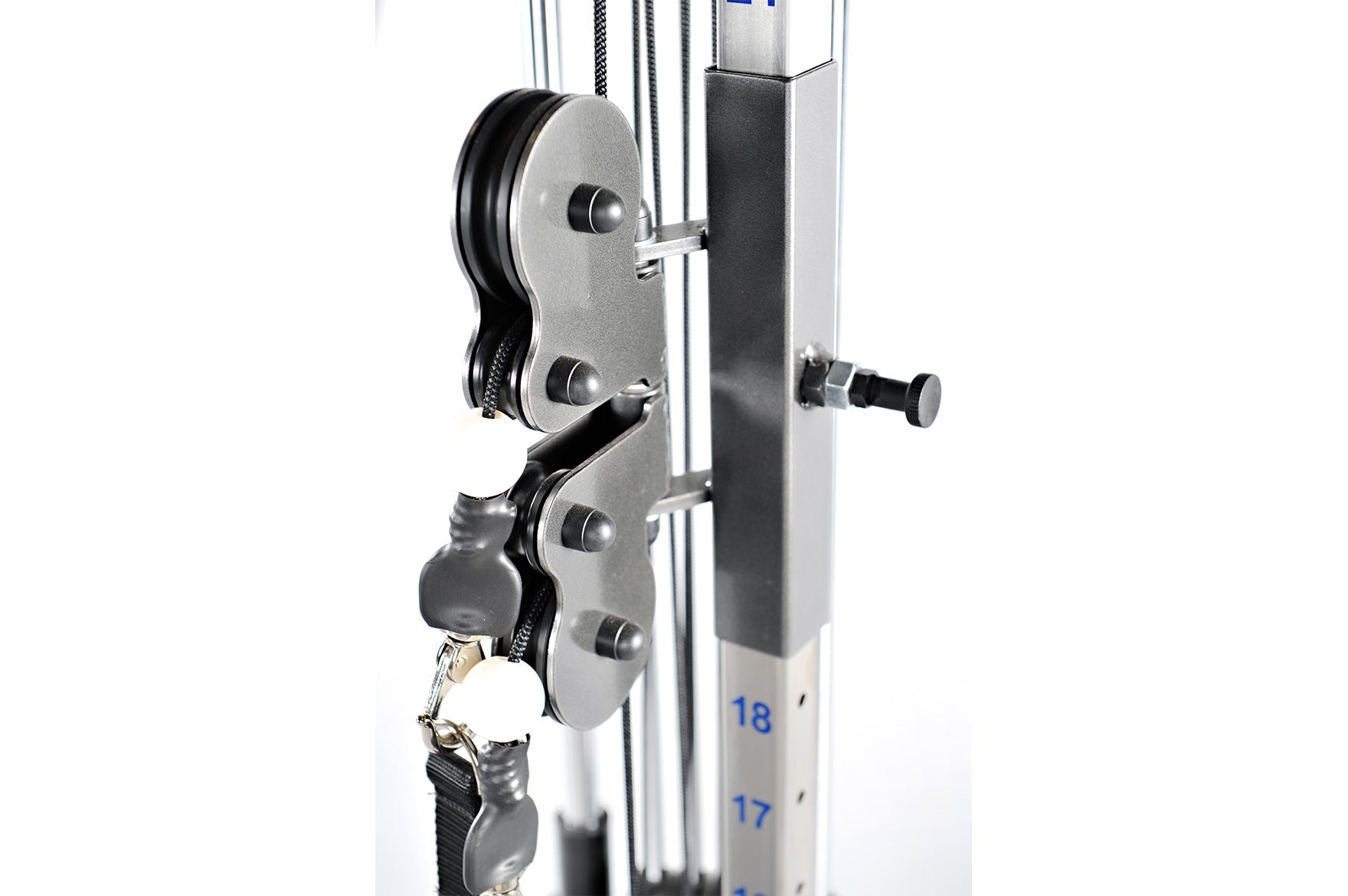

Cardon Speed Pulley System

The Cardon Speed Pulley allows for increased speed of movement overcoming inertia or recoil effect with the Standard Pulley. You can alter your treatment dosage without changing the number of weight plates.

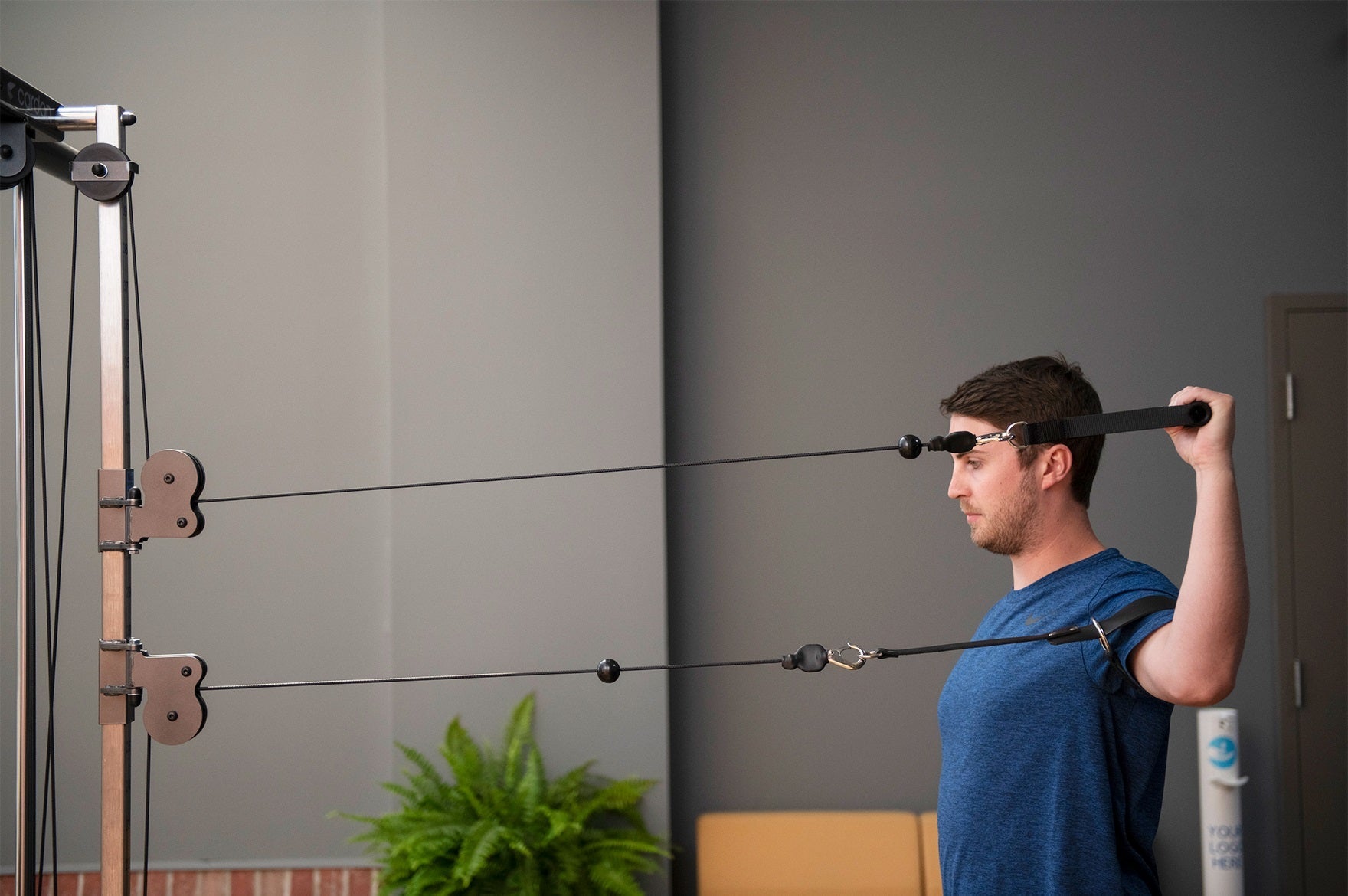

Applications

• Early spine and extremity rehab with respect to flexibility, coordination, endurance and strength.
• Dynamic movement superimposed on a static hold position.
• Resistive gait.
• Balance training.
• Core stability training.

6:1 weight to resistance ratio
Weight Stack Options	132 lbs. (M60S) 220 lbs. (M100S)
Minimum Resistance	1.0 lbs. (M60S) 1.7 lbs. (M100S)
Resistance Interval Adjustment	2”
Rope Excursion	30 feet

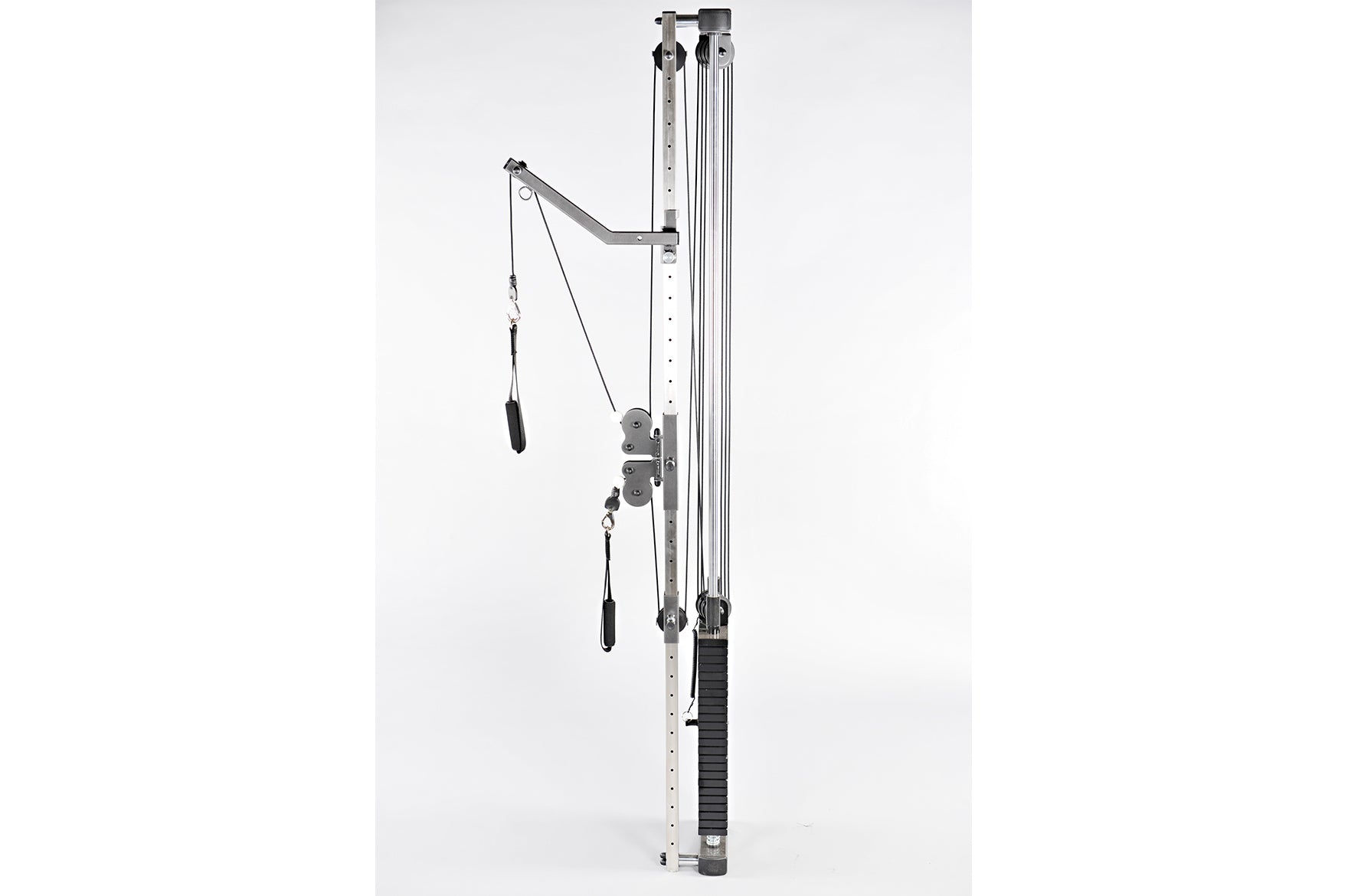

Mounting Options	Cardon Training Stand Cardon Corner Training Stand Wall Mounted
Powder coated weight stack with pin to select desired weight
Standard Accessory	(2) Webbed Nylon Handle
Dimensions	Height: 85” Width: 15” Depth: 7”

Cardon’s Lifetime Warranty

Our products are made with the highest quality materials and craftsmanship, that exceed your expectations in terms of performance, durability, and longevity. We use a unique high grade seamless steel tubing, that is designed for manufacturing automotive safety components. In combination with significant design enhancements, and the latest manufacturing technology we are confident in our upgraded lifetime warranty on frame offer.
